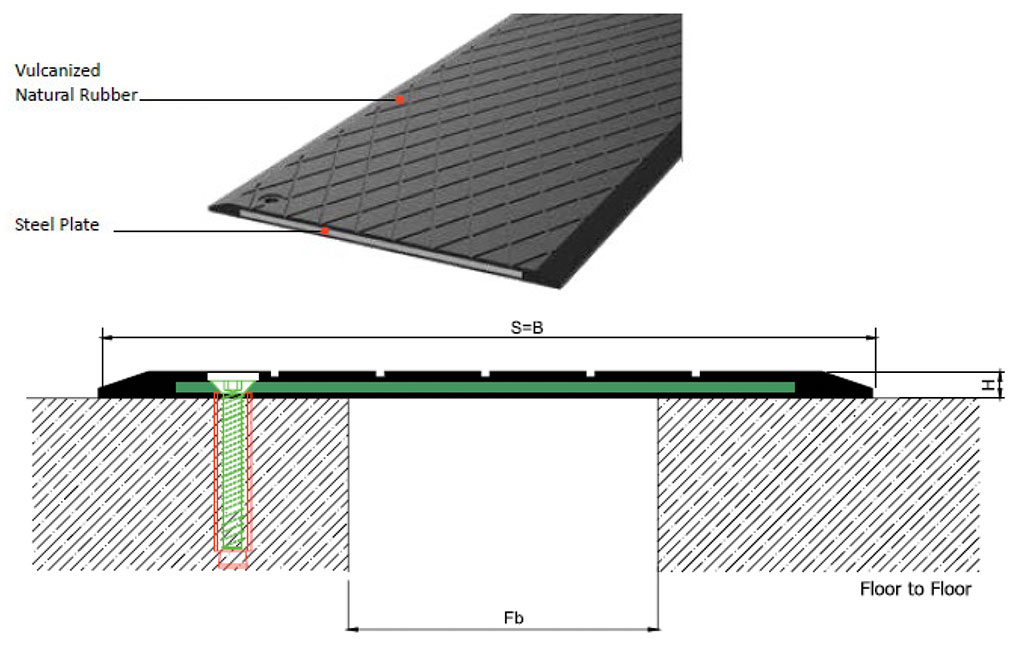

Location Model Gap (Fb) mm Height (H) mm Overall Width (B) mm Visible Width (S) mm Movement (W) mm Load Capacity Standard Length (mt)
Floor to Floor FR 371-050 50 8/9/10 200 200 +30 / -50 30 kN → 600 kN 2
Floor to Floor FR 371-100 100 8/9/10 250 250 +30 / -100 30 kN → 600 kN 2
Floor to Floor FR 371-150 150 8/9/10/14/15 300 300 +30 / -150 30 kN → 300 kN 2
Floor to Floor FR 371-200 200 20/21 350 350 +25 / -200 30 kN → 120 kN 2
Floor to Floor FR 371-250 250 25/26 400 400 +25 / -250 30 kN → 120 kN 2
Floor to Floor FR 371-050T 50 8/9/10 200 200 +30 / -50 30 kN → 600 kN 2
Floor to Floor FR 371-100T 100 8/9/10 250 250 +30 / -100 30 kN → 600 kN 2
Floor to Floor FR 371-150T 150 8/9/10/14/15 300 300 +30 / -150 30 kN → 300 kN 2

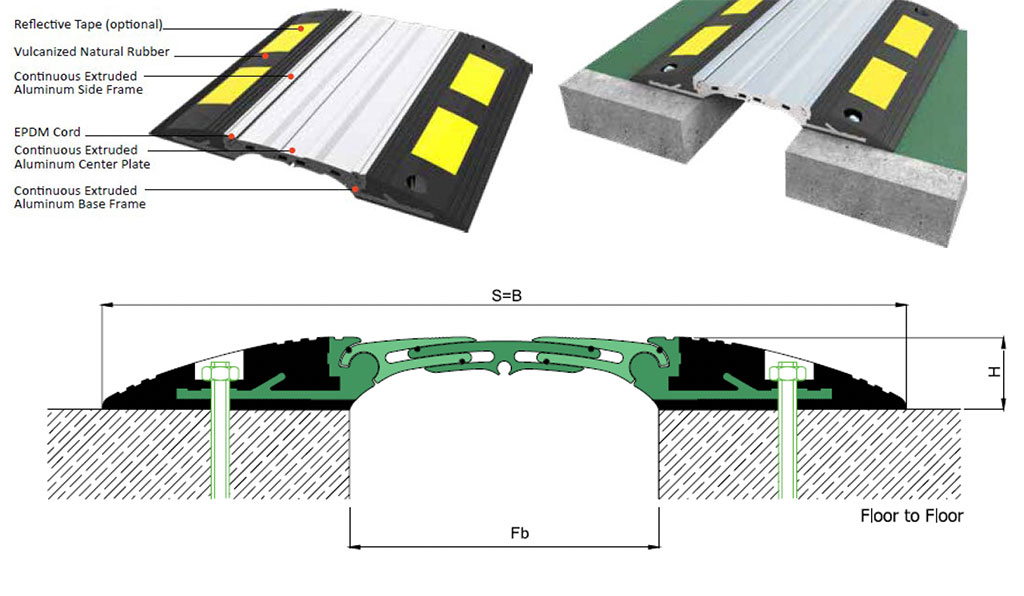

Location Model Gap (Fb) mm Height (H) mm Overall Width (B) mm Visible Width (S) mm Movement (W) mm Load Capacity Standard Length (mt)
Floor to Floor FR 374-080 80 25 / 35 324 324 ±12 70 kN / 600 kN 2
Floor to Floor FR 374-100 100 25 / 35 345 340 ±12 70 kN / 600 kN 2
Floor to Floor FR 374-120 120 25 / 35 364 364 +22 / -12 35 kN / 300 kN 2
Floor to Floor FR 374-150 150 25 / 35 390 390 ±22 25 kN / 120 kN 2
Floor to Floor FR 374-200 200 25 / 35 442 442 ±25 Car Traffic 2

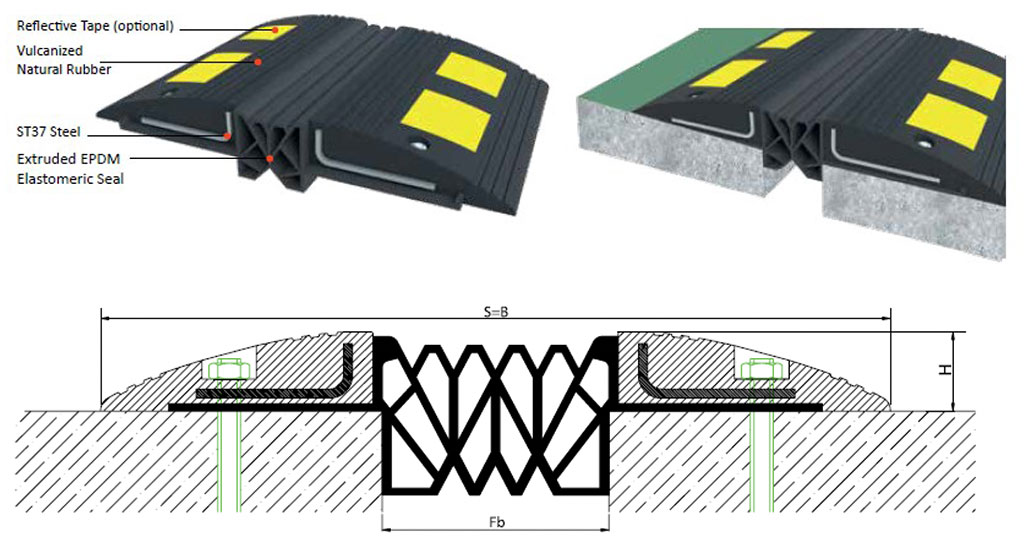

Location Model Gap (Fb) mm Height (H) mm Overall Width (B) mm Visible Width (S) mm Movement (W) mm Load Capacity Standard Length (mt)
Floor to Floor FR 375-050 50 35 290 290 ±40 90 kN 2
Floor to Floor FR 375-100 100 35 348 348 ±25 120 kN 2

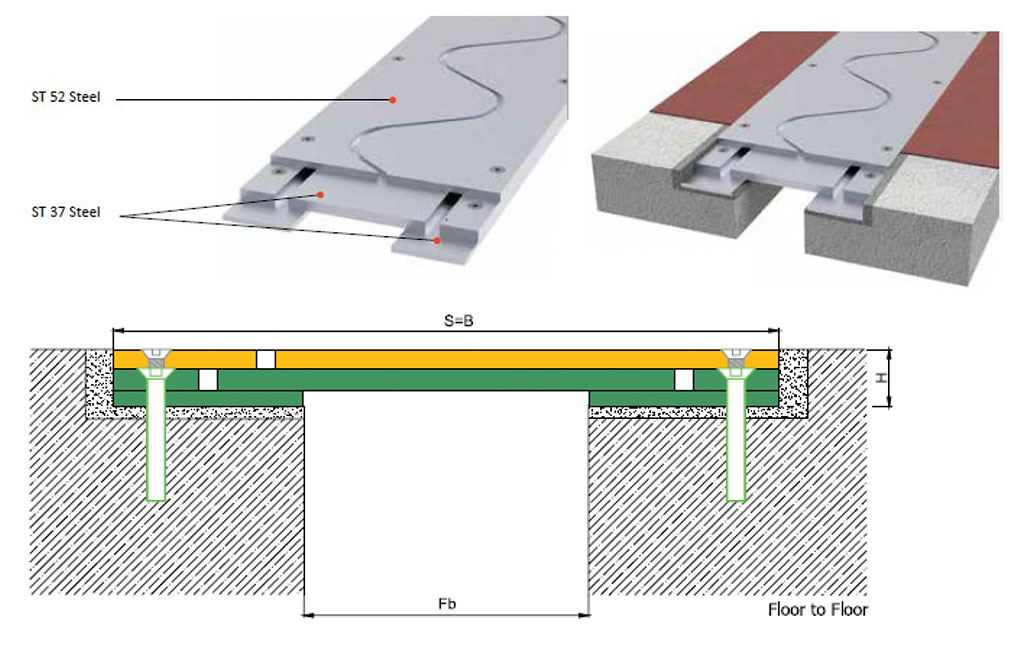

Location Model Gap (Fb) mm Height (H) mm Overall Width (B) mm Visible Width (S) mm Movement (W) mm Load Capacity Standard Length (mt)
Floor to Floor FR 370-050 50 20 210 210 ±10 600 kN / 70 kN 2
Floor to Floor FR 370-050 OPTIONS 50 22 210 210 ±10 600 kN / 130 kN 2
Floor to Floor FR 370-100 OPTIONS 100 22 260 260 ±10 600 kN / 70 kN 2
Floor to Floor FR 370-100 OPTIONS 100 24 260 260 ±10 600 kN / 90 kN 2
Floor to Floor FR 370-100 OPTIONS 100 26 260 260 ±10 600 kN / 130 kN 2
Floor to Floor FR 370-100 OPTIONS 100 28 260 260 ±10 600 kN / 130 kN 2
Floor to Floor FR 370-150 OPTIONS 150 24 310 310 ±10 600 kN / 70 kN 2
Floor to Floor FR 370-150 OPTIONS 150 26 310 310 ±10 600 kN / 130 kN 2
Floor to Floor FR 370-200 OPTIONS 200 26 360 360 ±10 300 kN / 70 kN 2
Floor to Floor FR 370-200 OPTIONS 200 28 360 360 ±10 600 kN / 70 kN 2
Floor to Floor FR 370-200 OPTIONS 200 30 360 360 ±10 600 kN / 130 kN 2
